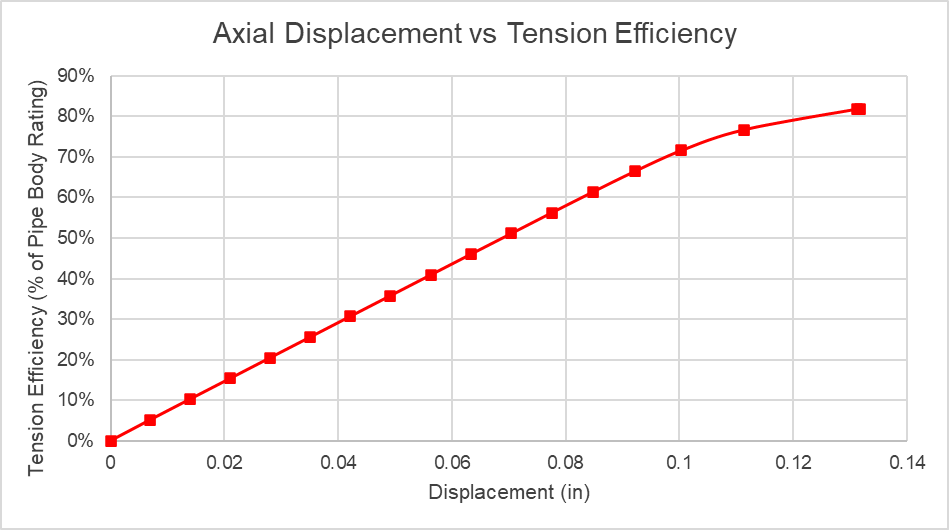

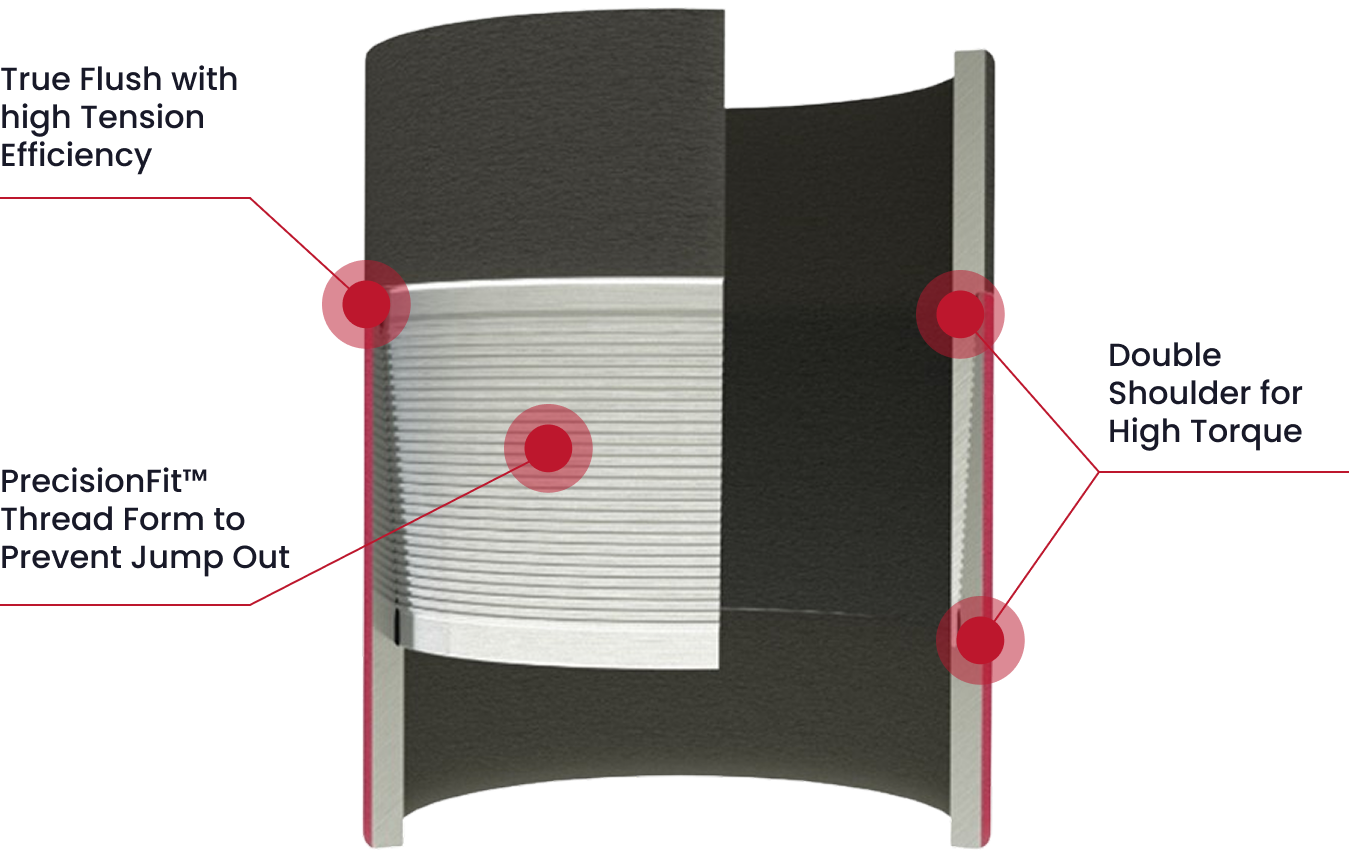

Modern demands often call for deep strings with true flush clearance. Deeper strings ultimately result in higher tensile loads. Most flush joint connections are limited to 60-65% tension efficiency and come with a costly metal-to-metal seal. That’s where Ares™ differs. We built a true flush joint connection with 70% tension efficiency and no metal-to-metal seal to save you cost in applications where premium sealability is overkill. Ares™ was designed with economics in mind. It was built to deliver what’s needed, with no waste. Ares™ can be threaded efficiently on standard API 5CT ERW or seamless tubes, offering the ultimate supply chain flexibility. The PrecisionFit™ thread form has a negative load flank to prevent jumpout and stepped crests allow for deep stabbing and quick make-up. Internal and external shoulders provide substantial torque capacity for rotating the string in difficult wells. This connection was built to deliver the performance you need.
Metal seal premium connections
Extreme torque – locked thread
Conventional – shoulder torque
Thread sealing semi-premium connections
Thread sealing semi-premium connections
Slim Line
High strength
Reach out to your Fermata® representative for more information
From casing design to finished OCTG products, we’re here to help.
Contact us today!
